We are providing of all kinds of metal cutting tools, CNC tools, cutting tools, hardware tools and special tools

Japanese Standard Open Threading Die in English System and American System

Category :
JIS Standard Dies

Online Consultation

Detailed Description

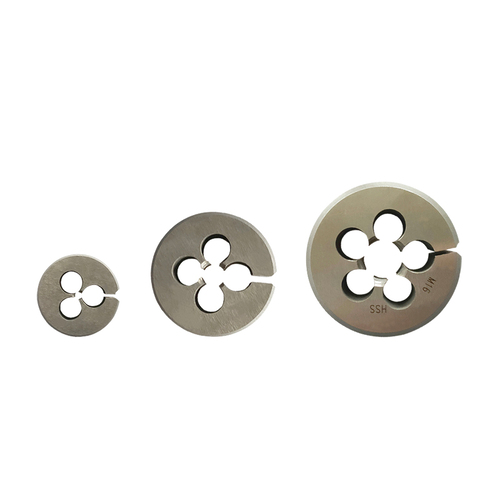

Japanese Standard Open Threading Die in English System and American System
Матрица с открытой резьбой по японскому стандарту в английской системе и американской системе

Japanese Standard Open Threading Die in Metric System

High Speed Stell or Alloy Tool Steel

Быстрорежущая сталь или легированная инструментальная сталь

JIS die UNC/UNF

JIS умереть UNC/UNF

Model NO Модель №	Size Размер	Outside Снаружи
XT17-1000	1/8-40UNC	13/16*(20)
XT17-1001	5/32-32UNC	13/16*(20)
XT17-1002	3/16-24UNC	13/16*(20)
XT17-1003	3/16-32UNF	13/16*(20)
XT17-1004	7/32-24UNC	13/16*(20)
XT17-1005	7/32-32UNF	13/16*(20)
XT17-1006	1/4-20UNC	13/16*(20)
XT17-1007	1/4-28UNF	13/16*(20)
XT17-1008	1/8-40UNC	1*(25)
XT17-1009	5/32-32UNC	1*(25)
XT17-1010	3/16-24UNC	1*(25)
XT17-1011	3/16-32UNF	1*(25)
XT17-1012	7/32-24UNC	1*(25)
XT17-1013	7/32-32UNF	1*(25)
XT17-1014	1/4-20UNC	1*(25)
XT17-1015	1/4-28UNF	1*(25)
XT17-1016	5/16-18UNC	1*(25)
XT17-1017	5/16-24UNF	1*(25)
XT17-1018	3/8-16UNC	1*(25)
XT17-1019	3/8-24UNF	1*(25)
XT17-1020	7/16-14UNC	1*(25)
XT17-1021	7/16-20UNF	1*(25)
XT17-1022	1/2-13UNC	1*(25)
XT17-1023	1/2-20UNF	1*(25)
XT17-1024	1/8-20UNC	1-5/16*(33)
XT17-1025	5/32-32UNC	1-5/16*(33)
XT17-1026	3/16-24UNC	1-5/16*(33)
XT17-1027	3/16-32UNF	1-5/16*(33)
XT17-1028	7/32-24UNC	1-5/16*(33)
XT17-1029	7/32-32UNF	1-5/16*(33)
XT17-1030	1/4-20UNC	1-5/16*(33)
XT17-1031	1/4-28UNF	1-5/16*(33)
XT17-1032	5/16-18UNC	1-5/16*(33)
XT17-1033	5/16-24UNF	1-5/16*(33)
XT17-1034	3/8-16UNC	1-5/16*(33)
XT17-1035	3/8-24UNF	1-5/16*(33)
XT17-1036	7/16-14UNC	1-5/16*(33)
XT17-1037	7/16-20UNF	1-5/16*(33)
XT17-1038	1/2-13UNC	1-5/16*(33)
XT17-1039	1/2-20UNF	1-5/16*(33)
XT17-1040	9/16-12UNC	1-5/16*(33)
XT17-1041	9/16-18UNF	1-5/16*(33)
XT17-1042	1/8-40UNC	1-1/2*(38)
XT17-1043	5/32-32UNC	1-1/2*(38)
XT17-1044	3/16-24UNC	1-1/2*(38)
XT17-1045	3/16-32UNF	1-1/2*(38)
XT17-1046	7/32-24UNC	1-1/2*(38)
XT17-1047	7/32-32UNF	1-1/2*(38)
XT17-1048	1/4-20UNC	1-1/2*(38)
XT17-1049	1/4-28UNF	1-1/2*(38)
XT17-1050	5/16-18UNC	1-1/2*(38)
XT17-1051	5/16-24UNF	1-1/2*(38)
XT17-1052	3/8-16UNC	1-1/2*(38)
XT17-1053	3/8-24UNF	1-1/2*(38)
XT17-1054	7/16-14UNC	1-1/2*(38)
XT17-1055	7/16-20UNF	1-1/2*(38)
XT17-1056	1/2-13UNC	1-1/2*(38)
XT17-1057	1/2-20UNF	1-1/2*(38)
XT17-1058	9/16-12UNC	1-1/2*(38)
XT17-1059	9/16-18UNF	1-1/2*(38)
XT17-1060	5/8-11UNC	1-1/2*(38)
XT17-1061	5/8-18UNF	1-1/2*(38)
XT17-1062	3/4-10UNC	1-1/2*(38)
XT17-1063	3/4-16UNF	1-1/2*(38)
XT17-1064	1/4-20UNC	2*(25)
XT17-1065	1/4-28UNF	2*(25)
XT17-1066	5/16-18UNC	2*(25)
XT17-1067	5/16-24UNF	2*(25)
XT17-1068	3/8-16UNC	2*(25)
XT17-1069	3/8-24UNF	2*(25)
XT17-1070	7/16-14UNC	2*(25)
XT17-1071	7/16-20UNF	2*(25)
XT17-1072	1/2-13UNC	2*(25)
XT17-1073	1/2-20UNF	2*(25)
XT17-1074	9/16-12UNC	2*(25)
XT17-1075	9/16-18UNF	2*(25)
XT17-1076	5/8-11UNC	2*(25)
XT17-1077	5/8-18UNF	2*(25)
XT17-1078	3/4-10UNC	2*(25)
XT17-1079	3/4-16UNF	2*(25)
XT17-1080	7/8-9UNC	2*(25)
XT17-1081	7/8-14UNF	2*(25)
XT17-1082	1-8UNC	2*(25)
XT17-1083	1-12UNF	2*(25)
XT17-1084	1/2-13UNC	2-1/2*(63)
XT17-1085	1/2-20UNF	2-1/2*(63)
XT17-1086	9/16-12UNC	2-1/2*(63)
XT17-1087	9/16-18UNF	2-1/2*(63)
XT17-1088	5/8-11UNC	2-1/2*(63)
XT17-1089	5/8-18UNF	2-1/2*(63)
XT17-1090	3/4-10UNC	2-1/2*(63)
XT17-1091	3/4-16UNF	2-1/2*(63)
XT17-1092	7/8-9UNC	2-1/2*(63)
XT17-1093	7/8-14UNF	2-1/2*(63)
XT17-1094	1-8UNC	2-1/2*(63)
XT17-1095	1-12UNF	2-1/2*(63)
XT17-1096	1-1/8-7UNC	2-1/2*(63)
XT17-1097	1-1/8-12UNF	2-1/2*(63)
XT17-1098	1-1/4-7UNC	2-1/2*(63)
XT17-1099	1-1/4-12UNF	2-1/2*(63)
XT17-1100	1-3/8-6UNC	2-1/2*(63)
XT17-1101	1-3/8-12UNF	2-1/2*(63)
XT17-1102	1-1/2-6UNC	2-1/2*(63)
XT17-1103	1-1/2-12UNF	2-1/2*(63)
XT17-1104	7/8-9UNC	3*(75)
XT17-1105	7/8-14UNF	3*(75)
XT17-1106	1-8UNC	3*(75)
XT17-1107	1-12UNF	3*(75)
XT17-1108	1-1/8-7UNC	3*(75)
XT17-1109	1-1/8-12UNF	3*(75)
XT17-1110	1-1/4-7UNC	3*(75)
XT17-1111	1-1/4-12UNF	3*(75)
XT17-1112	1-3/8-6UNC	3*(75)
XT17-1113	1-3/8-12UNF	3*(75)
XT17-1114	1-1/2-6UNC	3*(75)
XT17-1115	1-1/2-12UNF	3*(75)
XT17-1116	1-3/4-5UNC	3*(75)
XT17-1117	2-4-1/2UNC	3*(75)

JIS die BSW/BSF

JIS умереть BSW/BSF

Model NO Модель №	Size Размер	Outside Снаружи
XT18-1000	1/8-40BSW	13/16* (20)
XT18-1001	5/32-32BSW	13/16* (20)
XT18-1002	3/16-24BSW	13/16* (20)
XT18-1003	7/32-24BSW	13/16* (20)
XT18-1004	1/4-20BSW	13/16* (20)
XT18-1005	1/8-40BSW	1*(25)
XT18-1006	5/32-32BSW	1*(25)
XT18-1007	3/16-24BSW	1*(25)
XT18-1008	7/32-24BSW	1*(25)
XT18-1009	1/4-20BSW	1*(25)
XT18-1010	5/16-18BSW	1*(25)
XT18-1011	3/8-16BSW	1*(25)
XT18-1012	7/16-14BSW	1*(25)
XT18-1013	1/2-12BSW	1*(25)
XT18-1014	1/8-40BSW	1-5/16*(33)
XT18-1015	5/32-32BSW	1-5/16*(33)
XT18-1016	3/16-24BSW	1-5/16*(33)
XT18-1017	7/32-24BSW	1-5/16*(33)
XT18-1018	1/4-208SW	1-5/16*(33)
XT18-1019	5/16-18BSW	1-5/16*(33)
XT18-1020	3/8-16BSW	1-5/16*(33)
XT18-1021	7/16-14BSW	1-5/16*(33)
XT18-1022	1/2-12BSW	1-5/16*(33)
XT18-1023	9/16-12BSW	1-5/16*(33)
XT18-1024	1/8-40BSW	1-1/2*(38)
XT18-1025	5/32-32BSW	1-1/2*(38)
XT18-1026	3/16-24BSW	1-1/2*(38)
XT18-1027	7/32-24BSW	1-1/2*(38)
XT18-1028	1/4-20BSW	1-1/2*(38)
XT18-1029	5/16-18BSW	1-1/2*(38)
XT18-1030	3/8-16BSW	1-1/2*(38)
XT18-1031	7/16-14BSW	1-1/2*(38)
XT18-1032	1/2-12BSW	1-1/2*(38)
XT18-1033	9/16-12BSW	1-1/2*(38)
XT18-1034	5/8-11BSW	1-1/2*(38)
XT18-1035	11/16-11BSW	1-1/2*(38)
XT18-1036	3/4-10BSW	1-1/2*(38)
XT18-1037	1/4-20BSW	2*(50)
XT18-1038	5/16-18BSW	2*(50)
XT18-1039	3/8-16BSW	2*(50)
XT18-1040	7/16-14BSW	2*(50)
XT18-1041	1/2-12BSW	2*(50)
XT18-1042	9/16-12BSW	2*(50)
XT18-1043	5/8-118SW	2*(50)
XT18-1044	11/16-11BSW	2*(50)
XT18-1045	3/4-10BSW	2*(50)
XT18-1046	7/8-9BSW	2*(50)
XT18-1047	1-8BSW	2*(50)
XT18-1048	1/2-12BSW	1-1/2*(63)
XT18-1049	9/16-12BSW	1-1/2*(63)
XT18-1050	5/8-11BSW	1-1/2*(63)
XT18-1051	11/16-11BSW	1-1/2*(63)
XT18-1052	3/4-10BSW	1-1/2*(63)
XT18-1053	7/8-9BSW	1-1/2*(63)
XT18-1054	1-8BSW	1-1/2*(63)
XT18-1055	1-1/8-7BSW	1-1/2*(63)
XT18-1056	1-1/4-7BSW	1-1/2*(63)
XT18-1057	1-3/8-6BSW	1-1/2*(63)
XT18-1058	1-1/2-6BSW	1-1/2*(63)
XT18-1059	7/8-9BSW	3*(75)
XT18-1060	1-8BSW	3*(75)
XT18-1061	1-1/8-7BSW	3*(75)
XT18-1062	1-1/4-7BSW	3*(75)
XT18-1063	1-3/8-6BSW	3*(75)
XT18-1064	1-1/2-6BSW	3*(75)
XT18-1065	1-3/4-5BSW	3*(75)
2-4-1/2BSW	2-4-1/2BSW	3*(75)
