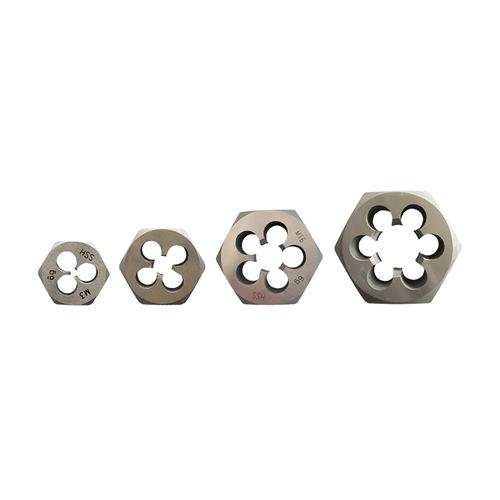

DIN382 G hexagonal die
DIN382 Шестигранная матрица G
|
Model NO Модель № |
Size Размер |
Outside Снаружи |
Thickness Толщина |
| XT14-1000 | G1/16A | 21 | 9 |
| XT14-1001 | G1/8A | 27 | 11 |
| XT14-1002 | G1/4A | 36 | 10 |
| XT14-1003 | G3/8A | 41 | 14 |
| XT14-1004 | G1/2A | 41 | 14 |
| XT14-1005 | G5/8A | 50 | 16 |
| XT14-1006 | G3/4A | 50 | 16 |
| XT14-1007 | G7/8A | 60 | 18 |
| XT14-1008 | G1A | 60 | 18 |
| XT14-1009 | G1-1/8A | 70 | 20 |
| XT14-1010 | G1-1/4A | 70 | 20 |
| XT14-1011 | G1-1/2A | 85 | 22 |
| XT14-1012 | G1-3/4A | 100 | 22 |
| XT14-1013 | G2A | 100 | 22 |
DIN382 R hexagonal die
DIN382 Шестигранная матрица R
|
Model NO Модель № |
Size Размер |
Outside Снаружи |
Thickness Толщина |
| XT12-1000 | 1/8-40BSW | 18 | 5 |
| XT12-1001 | 3/16-24BSW | 18 | 7 |
| XT12-1002 | 3/16-32BSF | 18 | 7 |
| XT12-1003 | 7/32-28BSF | 18 | 7 |
| XT12-1004 | 1/4-20BSW | 18 | 7 |
| XT12-1005 | 1/4-26BSF | 18 | 7 |
| XT12-1006 | 9/32-26BSF | 21 | 9 |
| XT12-1007 | 5/16-18BSW | 21 | 9 |
| XT12-1008 | 5/16-22BSF | 21 | 9 |
| XT12-1009 | 3/8-16BSW | 27 | 11 |
| XT12-1010 | 3/8-20BSF | 27 | 11 |
| XT12-1011 | 7/16-14BSW | 27 | 11 |
| XT12-1012 | 7/16-18BSF | 27 | 11 |
| XT12-1013 | 1/2-12BSW | 36 | 14 |
| XT12-1014 | 1/2-16BSF | 36 | 14 |
| XT12-1015 | 9/16-12BSW | 36 | 14 |
| XT12-1016 | 9/16-16BSF | 36 | 10 |
| XT12-1017 | 5/8-11BSW | 41 | 18 |
| XT12-1018 | 5/8-14BSF | 41 | 14 |
| XT12-1019 | 11/16-11BSW | 41 | 18 |
| XT12-1020 | 11/16-14BSF | 41 | 14 |
| XT12-1021 | 3/4-10BSW | 41 | 18 |
| XT12-1022 | 3/4-12BSF | 41 | 18 |
| XT12-1023 | 7/8-9BSW | 50 | 22 |
| XT12-1024 | 7/8-11BSF | 50 | 22 |
| XT12-1025 | 1-8BSW | 50 | 22 |
| XT12-1026 | 1-10BSF | 50 | 22 |
| XT12-1027 | 1-1/8-7BSW | 60 | 25 |
| XT12-1028 | 1-1/8-9BSF | 60 | 25 |
| XT12-1029 | 1-1/4-7BSW | 60 | 25 |
| XT12-1030 | 1-1/4-9BSF | 60 | 25 |
| XT12-1031 | 1-3/8-6BSW | 60 | 25 |
| XT12-1032 | 1-3/8-8BSF | 60 | 25 |
| XT12-1033 | 1-1/2-6BSW | 70 | 30 |
| XT12-1034 | 1-1/2-8BSF | 70 | 30 |
| XT12-1035 | 1-5/8-5BSW | 70 | 30 |
| XT12-1036 | 1-5/8-8BSF | 70 | 30 |
| XT12-1037 | 1-3/4-5BSW | 85 | 36 |
| XT12-1038 | 1-3/4-7BSF | 85 | 36 |
| XT12-1039 | 2-4-1/2BSW | 85 | 36 |
| XT12-1040 | 2-7BSF | 85 | 36 |
